Details

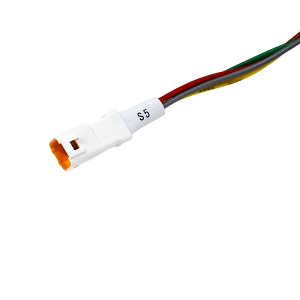

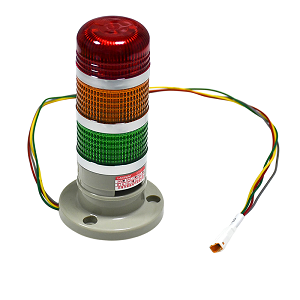

Winna's high-quality warning light harness custom processing service, designed for warning lighting systems in industrial, transportation, and special vehicle fields. This harness uses high-temperature resistant, UV-resistant premium wires and waterproof connectors to ensure stable transmission of electrical signals and power in harsh environments. Through precision processing and customized solutions, it can be adapted to devices such as LED warning lights, rotating lights, and strobe lights, widely used in construction machinery, police vehicles, airport ground support, and emergency lighting scenarios, meeting customers' stringent requirements for high reliability and long-life harnesses.
Technical Specifications
| Specification Item | Parameter/Description |
|---|---|
| Rated Voltage | 12V / 24V DC (Optional) |
| Operating Temperature Range | -40°C to +125°C |
| Protection Rating | IP67 (Connector Part) |
| Wire Specification | 0.5mm² - 4mm² Stranded Copper Wire |
| Flame Retardant Rating | VW-1 / FT2 (Compliant with UL Standards) |
Product Features
- Strong Weather Resistance: Uses UV-resistant and low-temperature embrittlement-resistant materials, suitable for long-term outdoor exposure and extreme climates.
- Customized Interface: Supports various connector types (e.g., waterproof connectors, German standard plugs), compatible with mainstream warning light brands.
- Anti-Interference Design: Shielded layer and twisted wire structure effectively suppress electromagnetic interference, ensuring stable signal transmission.
- Full Inspection Before Shipment: Each harness passes continuity, insulation withstand voltage, and waterproof tests, with a defect rate below 50ppm.
Application Scenarios
Construction Machinery and Special Vehicles
Suitable for warning light systems on excavators, cranes, fire trucks, and ambulances. The harness can withstand vibration, oil contamination, and high-pressure washing, ensuring operational safety.
Traffic and Aviation Ground Support Equipment
Used for traffic signal lights, airport runway warning lights, and apron guidance lights, meeting long-distance wiring requirements and supporting high-brightness LED module power supply.
Frequently Asked Questions
Does Winna's warning light harness support non-standard interface customization?
How is the waterproof performance of the harness verified?
What is the delivery cycle for bulk orders?
Brand: Winna. Certification: CE, FCC, UL, RoHS, ISO.
About Winna Technology
Winna Technology specializes in power adapters, AC/DC cable harness customization, and ultrasonic metal welding equipment R&D and manufacturing, providing one-stop OEM/ODM services.
Our products are CE/UL/FCC/CCC/RoHS certified, with an annual return rate below 0.02%, serving customers in 50+ countries and regions worldwide.
Wire Harness Customization & Processing Flow
From requirement confirmation to finished product delivery, 10 processes with strict checks at every stage ensure each wire harness meets the highest quality standards
We have comprehensive wire harness customization and processing capabilities, covering the entire process from requirement confirmation to finished product delivery. The following is the standard wire harness processing workflow, with strict quality control standards at each step to ensure product consistency and reliability.
Confirm Requirements, Start with Precision
Before production, engineering confirms the specifications based on the customer's drawings and specifications. Any pending items are communicated with the customer to resolve production questions before finalizing the manufacturing process, ensuring every step is accurate.
Cutting Precision Down to the Millimeter
Cut wires (cables) to the required length and coil them. Operators carefully verify the specifications on the production work order before cutting, using calibrated advanced equipment to ensure the processing quality of each wire.
Professional Stripping, Precision Pre-Soldering
Remove the wire jacket (outer sheath) and any unnecessary fillers. Use a professional pneumatic wire stripper to strip the jacket, then perform pre-soldering. Adjust the equipment precisely according to each wire specification to ensure zero damage to the core conductor.
Secure Connection, Reliable Transmission
Crimp the terminal to the wire (cable) core conductor. Use a professional terminal crimping machine, with dedicated crimping dies for different terminals. Strictly adjust the machine and check the crimping specifications before operation to ensure each terminal connection is firm and reliable.
Fine Assembly, Quality Assurance
According to the engineering drawing, sort the crimped core wires, assemble them into the connector housing, and reinforce the wire harness strength. All processing methods strictly follow the engineering drawing and SOP, using specialized tools to ensure consistency.
Full Traceability at a Glance
Attach labels containing information such as specifications, ID, and serial number to each customized wire. Labels help assembly personnel quickly find the corresponding interface and facilitate future traceability of production history, enabling full-process digital management.
Self-Inspection & Peer Check, Layered Control
After assembly, perform self-inspection during wire harness production based on the production work order drawings and dimensions, ensuring all manufacturing details are confirmed. Every step is recorded, and every link is traceable.
Four-Wire Testing, Zero Defects Outgoing
All completed wire harnesses undergo continuity testing, resistance measurement, wire position measurement, and insulation resistance testing using a four-wire electrical tester. They are only released after confirming normal electrical characteristics, ensuring each wire harness meets design standards.
Digital Archiving, Traceable Quality
Record and archive images of the finished wire harness. Production engineering data and appearance are digitally archived for easy future review, modification, or addition. Digital management ensures precise reproduction of wire harnesses with the same specifications.
Safe Protection, On-Time Delivery
Carefully package with cushioning materials to ensure no damage during transportation, and ship according to the specified method. Full tracking from packaging to logistics ensures products are delivered safely and on time to the customer.
Need Wire Harness Customization Services?
From solution design to mass production, Winna Technology provides one-stop wire harness customization solutions
Contact for Customization →Specifications
