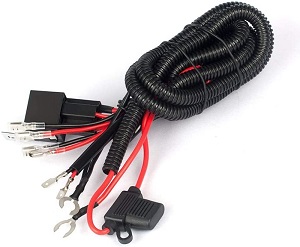

The automotive horn wiring harness is a key component connecting the car horn to the power supply and control unit, responsible for transmitting electrical signals and driving the horn to sound. This product uses precision processing technology to ensure each harness has good conductivity, temperature resistance, and anti-interference capability, widely used in the horn systems of passenger cars, commercial vehicles, and special vehicles. Product Features High-quality Copper Core Wire: Uses oxygen-free copper material, low resistance, excellent conductivity, ensuring signal transmission without attenuation. Flame-retardant Insulation Layer: Uses high-temperature resistant, flame-retardant PVC material, effectively preventing circuit aging or short circuits from causing fires. Waterproof and Dustproof Design: Equipped with a sealing ring at the interface, adapting to harsh environments like the engine compartment, extending service life. Precise Fit: Provides a variety of standard interfaces and customization services, compatible with the horn installation positions of mainstream vehicle models. Anti-interference Shielding: Optional shielding layer to reduce electromagnetic interference, ensuring pure horn sound quality. Technical Specifications Rated Voltage: 12V/24V (Compatible) Rated Current: 10A-20A (Depending on wire gauge) Operating Temperature: -40℃+125℃ Wire Gauge: 0.5mm²2.5mm² Insulation Material: PVC (Flame Retardant Grade V0) Connector Type: Blade type/Butt type/Screw type (Customizable) Application Scenarios Automotive Horn System: For original horn replacement or upgrade, providing stable power and signal connection. Car Audio Modification: Used with high-power horns to ensure unrestricted current transmission. Car Maintenance and Repair: Replace aging or damaged harnesses to restore normal horn function. Vehicle Electronic Equipment: Suitable for engineering vehicles, agricultural machinery, etc., that require horn alerts.
Technical Specifications
| Parameters | Please consult sales for detailed specifications |
Product Features
- Please contact sales for detailed product features
Application Scenarios
- Home Appliances and Consumer Electronics
Custom power cords, signal wires, and ribbon cables, meeting ROHS/REACH environmental standards, suitable for white goods and small appliances. - Automotive Electronics and New Energy
Automotive wiring harnesses, sensor harnesses, high-voltage connection harnesses, passing TS16949 quality system, high temperature and vibration resistant. - Industrial Automation and Equipment
Robot harnesses, servo motor harnesses, drag chain cables, high flexibility and bending resistance, adapting to complex industrial environments. - Medical Equipment Harnesses
Medical-grade harness customization, biocompatible materials, precision terminal crimping, suitable for monitors, ultrasound equipment, etc.
