3000W Precision Ultrasonic Welder YN-P203-F adopts 20KHz high-frequency technology, with a welding area covering 1-100mm². Its core value lies in providing stable and precise welding for precision electronic sensors, ensuring secure connections of micro components.
Technical Specifications

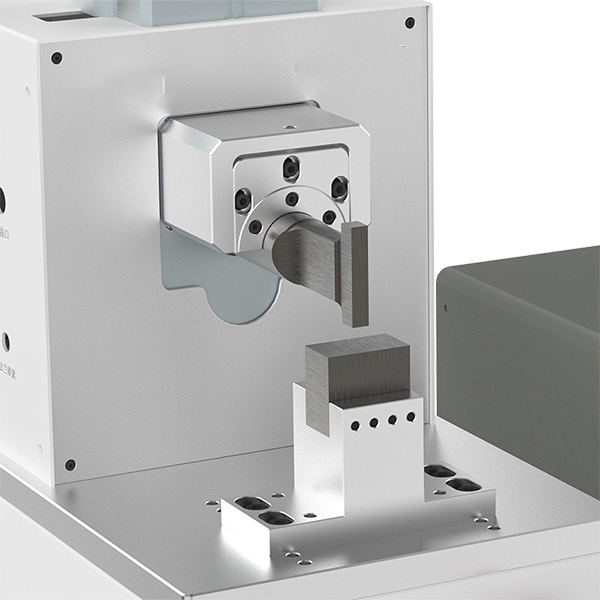

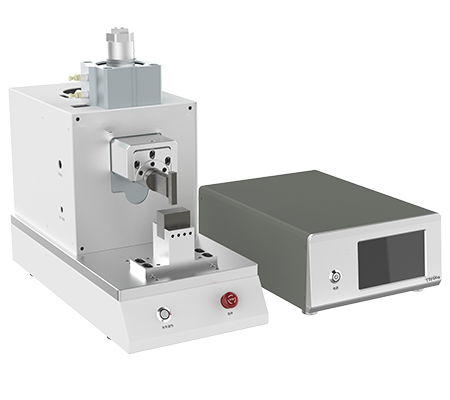

Product Appearance
| Parameter Name | Parameter Value |
| Input Voltage | 220V |
| Operating Frequency | 20KHz |
| Rated Power | 3000W (Optional 2000W/4000W) |
| Welding Area | 1-100mm² |
| Device Dimensions | 565×269×442mm |
| Device Weight | 73KG |
Product Features
- High-Precision Welding: Utilizes 20KHz high-frequency output with stable and controllable welding energy, ideal for secure connections of micro terminals, sensors, and other precision electronic components.
- Scalable Power: Standard configuration of 3000W, with optional 2000W/4000W solutions, flexibly meeting different workpiece welding needs with high cost performance.
- Robust and Durable: The whole machine weighs 73KG, with a stable structure, low failure rate during long-term operation, ensuring production continuity.

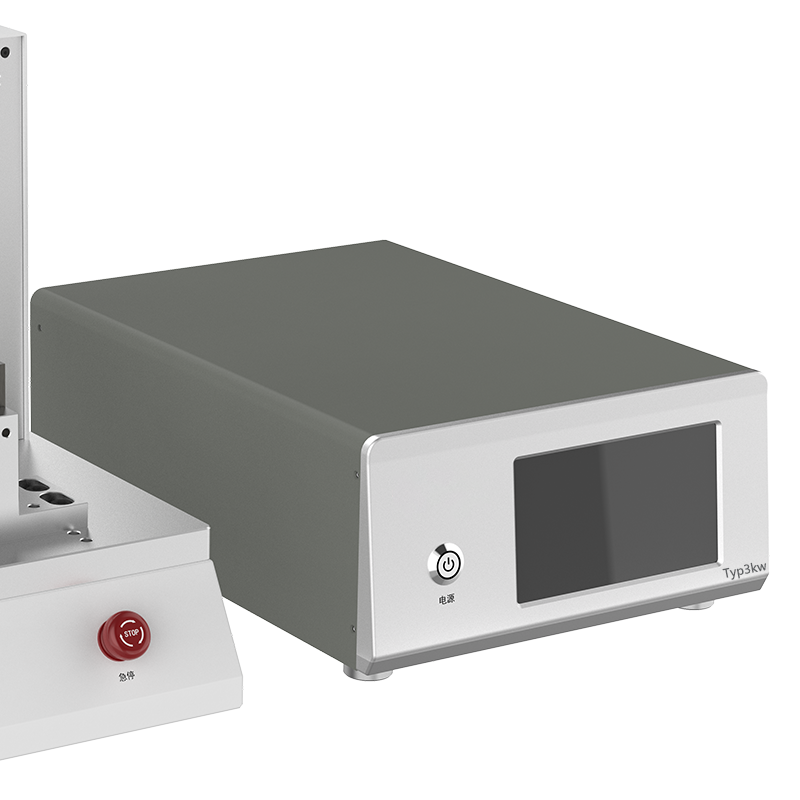

- Easy Operation: Equipped with a touch interface and intelligent parameter storage function, allowing quick switching of welding programs to improve work efficiency.
Application Scenarios

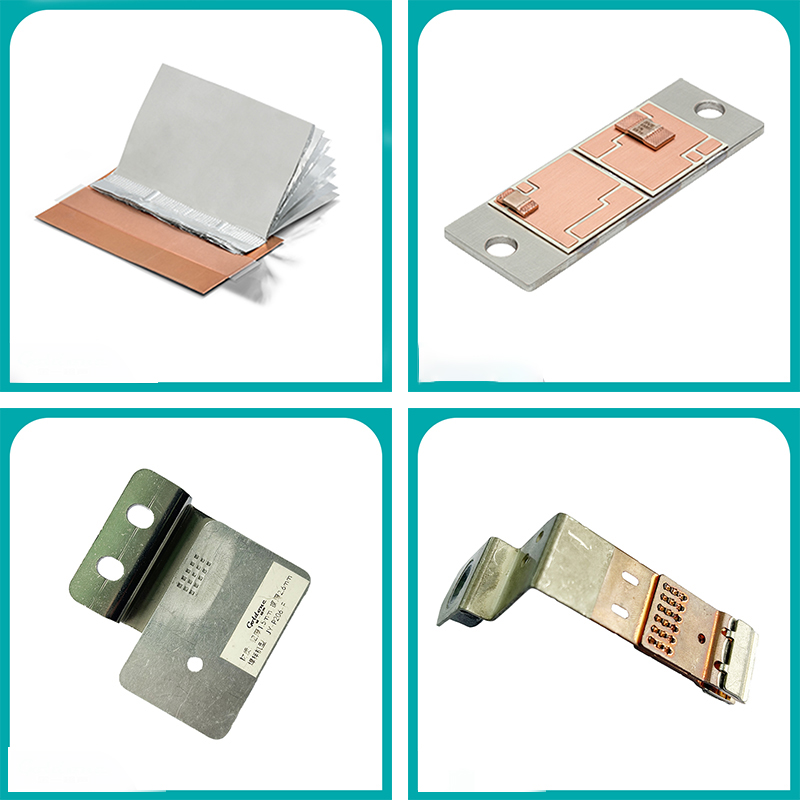

- New Energy Lithium Battery Production Line
Power battery tab welding, module busbar welding, energy storage battery pack assembly, weld resistance ≤100μΩ, with extensive experience in daily production line integration. - Automotive Wiring Harnesses and Connectors
High-voltage harness terminals, motor lead wires, IGBT module welding, replacing traditional crimping, reducing contact resistance by over 60%. - Copper-Aluminum Transition Welding
Direct solid-state connection of copper-aluminum dissimilar metals without transition pieces, widely used in charging piles and power electrical industries. - Precision Electronic Components
Micro terminal and sensor pin welding, with minimal heat-affected zone, suitable for medical electronics and instrumentation.
Frequently Asked Questions
What materials can the YN-P203-F ultrasonic welder weld?
This machine is suitable for welding metal materials such as copper, aluminum, nickel, etc., commonly used in precision electronics, sensors, and small terminal welding.
How to choose between 2000W, 3000W, or 4000W power versions?
Power selection depends on the welding workpiece area and material thickness. Generally, 2000W is recommended for 1-50mm², 3000W for 50-100mm², and 4000W for larger or thicker workpieces. Consult the technical team for specifics.
Does the device require professional training for operation?
The device is equipped with a touch interface and intelligent parameter storage function for intuitive operation. However, basic training before first use is recommended to ensure accurate parameter settings and optimal performance.
Does the welding area of 1-100mm² cover all common terminals?
Yes, this range covers the welding needs of most precision electronic terminals, sensor leads, and small wiring harnesses, from 0.5mm² micro terminals to 100mm² large terminals.
What advantages does the YN-P203-F have over other brands with the same power?
The YN brand is renowned in precision welding. This machine features 20KHz high-frequency output and stable energy control for high welding precision; offers scalable power options for excellent cost performance; and has a robust 73KG structure for low failure rates during long-term operation.
