Yinna Technology desktop adjustable power adapter series covers a power range from 65W to 330W, with adjustable output voltage of 9-58VDC/9-60VDC, meeting diverse power supply needs from industrial equipment, LED displays, communication base stations to energy storage systems. The entire series has obtained international certifications such as UL, CE, FCC, KC, PSE, SAA, RoHS, with Energy Efficiency Level VI, suitable for the global market. Desktop compact structure, optional DC connector, suitable for long-term continuous operation.
Full Series Model Specifications
| Model | Input Voltage | Output Range | Output Current | Max Power | Dimensions | Efficiency | Certifications | Plug Type |
| YN65W1 | AC100-240V 2A | 29V Fixed Output | 0.01-2A | 65W | 63×63×28mm | VI | CB/CCC/UL/FCC/EU | Foldable/Fixed Plug |
| YN65W | AC100-240V 2A | 3.6-48Vdc | 0.01-8A | 72W | 85.9×46.33×33mm | VI | CB/3C/UL/FCC/CE/GS/UKCA/SAA/RCM/PSE/KC/KCC/NOM/BIS | Interchangeable Plug (US/EU/UK/AU) |
| YN72W | AC100-240V 1.5A | 9-48VDC Optional | 0.01-6A | 72W | Desktop | VI | UL/CE/FCC/KC/PSE/SAA/RoHS | Optional DC Connector |
| YN100W | AC100-240V 2.5A | 9-58VDC Adjustable | 0.01-8A | 100W | Desktop Compact | VI | UL/CE/FCC/KC/PSE/SAA/RoHS | Optional DC Connector |
| YN120W | AC100-240V 2.5A | 9-60V Adjustable | 0.1-10A | 120W | Desktop | VI | UL/CE/FCC/KC/PSE/SAA/RoHS | Interchangeable C6/C8/C14 Connector |
| YN160W | AC100-240V 2.5A | 9-58VDC | 0.01-12.5A | 160W | Desktop | VI | UL/CE/FCC/KC/PSE/SAA/RoHS | Optional DC Connector |

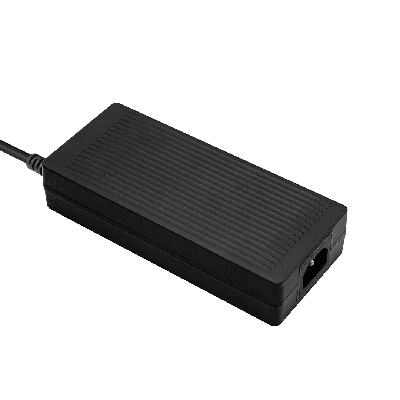

| YN180W | AC100-240V 3A | 9-60V Adjustable | 0.01-12A | 180W | 158.8×67×31.81mm | VI | UL/CE/FCC/IEC62368 | Optional DC Connector |
| YN330W | AC100-240V 3.5A | 9-58VDC Adjustable | 0.01-25A | 330W | Desktop | VI | UL/CE/FCC/KC/PSE/SAA/RoHS | Optional DC Connector |
Electrical Characteristics
| Input Voltage Range | AC 100-240V (Global Wide Voltage) 50/60Hz |
| Energy Efficiency Level | Complies with Level VI efficiency standard, conversion efficiency ≥88% |
| Ripple & Noise | <200mVp-p (Typical) |
| Dielectric Strength | Input-Output 3000VAC/1min |
| Insulation Resistance | Input-Output ≥100MΩ (500VDC) |
| Protection Functions | Over Voltage Protection / Over Current Protection / Short Circuit Protection / Over Temperature Protection |
| Safety Standards | IEC62368 / IEC61558 (Dual Standard Optional) |
| EMC Standards | EN55032 Class B, EN61000-4 Series |
Environmental Parameters
| Operating Temperature | -10°C to +40°C (Full Load) |
| Storage Temperature | -20°C to +70°C |
| Operating Humidity | 20% ~ 80% RH (Non-condensing) |
| Storage Humidity | 10% ~ 90% RH (Non-condensing) |
| Altitude | ≤3000m |
| Cooling Method | Natural Convection Cooling (Fanless) |
| MTBF | ≥50,000 hours (MIL-HDBK-217F Standard) |
Mechanical Parameters
| Product Form | Desktop |
| Housing Material | PC/ABS Flame Retardant Enclosure (UL94 V-0) |
| Color | Black / White Optional |
| Input Connector | IEC320 C6/C8/C14 (Interchangeable Connector Module) |
| Output Connector | DC Jack 5.5×2.1mm / 5.5×2.5mm / Custom |
| LED Indicator | Green LED Power On Indicator |
| Weight | Approx. 150g~800g (Depending on Power Level) |
Application Scenarios
- Industrial Automation Control
Stable power supply for industrial PLCs, servo drives, CNC systems; wide adjustable voltage 9-58VDC, adaptable to complex industrial electromagnetic environments.
- LED Display / Lighting
LED large screens, street lighting, landscape lighting; high reliability, long-life design, strong adaptability to outdoor environments.
- Communication Base Station / Network Equipment
Power supply guarantee for 7×24 hour continuous operation of switches, routers, servers, base station equipment.
- Security Surveillance / Access Control
Surveillance cameras, access controllers, NVR recorders; flexible optional DC connector for easy installation.
- Portable Energy Storage / New Energy
DC input power supply for outdoor power stations, photovoltaic energy storage systems, portable power stations.
Frequently Asked Questions
How to adjust the output voltage of the desktop adjustable power adapter?
Some models use a potentiometer knob for stepless voltage adjustment, while others provide fixed output levels. Please refer to the product specification sheet for the specific model for adjustment methods.
What international certifications does this series of power adapters support?
The entire series has obtained international certifications such as UL, CE, FCC, KC, PSE, SAA, RoHS. Some models also have certifications like CB, CCC, GS, UKCA, NOM, BIS, meeting global market access requirements.
Is the desktop power adapter suitable for long-term continuous operation?
Yes. This series uses natural convection cooling design (fanless), with a desktop compact structure for good heat dissipation, MTBF ≥50,000 hours, supporting 7×24 hour continuous operation.
Can the output DC connector be customized?
Yes. Standard is 5.5×2.1mm DC jack. Customization for 5.5×2.5mm, 3.5×1.35mm or other DC connector specifications, as well as custom output cable length and terminal type, is available based on customer requirements.
Which industries is this series of power adapters suitable for?
Widely used in industrial automation, LED display lighting, communication networks, security surveillance, portable energy storage, medical equipment support (requires medical-grade series selection), and other fields.
How much power can Level VI efficiency save compared to Level V?
Level VI efficiency requires standby power <0.15W (Level V <0.3W), full load efficiency ≥88% (Level V ≥85%). Long-term use can save approximately 15-25% of energy consumption.
