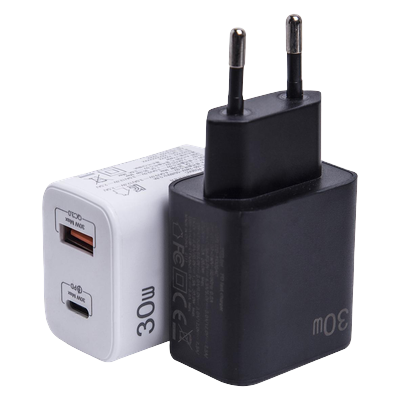

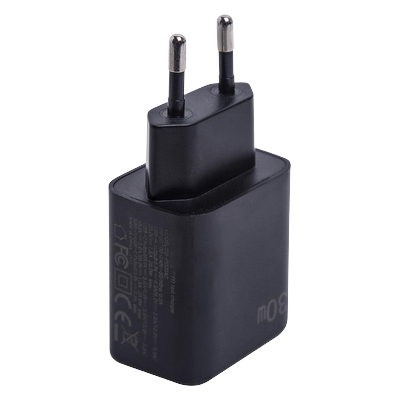

The 30W PD Fast Charging Power Adapter with Dual Output YN30PD is a globally compatible charging device supporting USB-C PD fast charging and USB-A output. Its core value lies in simultaneously fast charging phones, tablets, and other devices, equipped with multi-country plugs to adapt to different regional standards, and certified with CE/FCC safety approvals.
Technical Specifications
| Input Voltage | AC 100-240V 0.5A |
| USB-C Output | 5V/9V/12V/15V/20V 30W Max |
| USB-A Output | 5V/9V/12V/20V 30W Max |
| Total Output Power | 30W (Shared Dual Port) |
| Fast Charging Protocol | PD3.0 / PPS |
| Interface Type | USB-C + USB-A |
| Applicable Devices | Phones, Tablets, Laptops (30W Emergency) |
| Certifications | UL, CE, FCC, KC, PSE, SAA, RoHS |
Product Features
- Dual Port Fast Charging, Efficient Synchronization: USB-C and USB-A dual port design supports charging two devices simultaneously, compatible with PD3.0/PPS fast charging protocols, providing a rapid charging experience for phones and tablets.
- Global Compatibility, Travel Worry-Free: Wide voltage input (AC100-240V) adapts to power grid standards worldwide, paired with multi-country plugs, eliminating the need for additional converters during business trips or travel.
- 30W High Power, Essential for Emergencies: USB-C single port output up to 30W, can provide emergency charging for PD-compatible laptops, solving temporary low battery issues.
- Multiple Certifications, Safe and Reliable: Passed international authoritative certifications including UL, CE, FCC, KC, PSE, SAA, RoHS, with built-in over-voltage, over-current, and short-circuit protection to ensure charging safety.
- Compact and Portable, Travel Companion: Compact design, lightweight and easy to carry, takes up no space, ideal charging partner for business trips and vacations.
Application Scenarios
- Consumer Electronics
Smartphones, tablets, laptops, gaming consoles, etc., for PD fast charging and standard charging, supporting PD3.0/QC4+/PPS full protocols. - Medical Equipment Power Supply
Patient monitors, ventilators, portable medical devices, ultra-low leakage current, certified to IEC EN60601 medical grade standards. - Industrial Control and LED Lighting
Industrial switches, industrial PCs, LED displays, security surveillance, wide voltage range 9-58VDC adjustable, adaptable to harsh grid environments. - Network Communication and IoT
Routers, switches, fiber optic terminals, IoT gateways, high-reliability uninterrupted power supply, certified with UL/CE/FCC.
Frequently Asked Questions
Does this charger support charging laptops?
Yes. The USB-C port outputs up to 30W, providing emergency charging for PD-compatible laptops (such as MacBook Air, Surface Pro, etc.), but cannot meet the full-speed charging needs of high-power laptops (such as gaming laptops).
How is power distributed when both ports are charging simultaneously?
When both ports are outputting simultaneously, the total power is 30W. The system intelligently distributes power based on device demand, prioritizing fast-charging devices to ensure charging efficiency and safety.
Are the multi-country plugs suitable for use in China?
Yes. The product comes with multi-country plugs, including the Chinese national standard plug, which can be used directly in China. It also includes conversion plugs for European, American, British, and other standards, suitable for over 150 countries and regions worldwide.
Does the charger support fast charging for Apple and Android devices?
Yes. The USB-C port is compatible with the PD3.0 protocol, providing fast charging for iPhone 8 and later models (including the iPhone 15 series); the USB-A port supports mainstream fast charging protocols like QC3.0, compatible with most Android phones.
Is it normal for the charger to heat up during operation?
Yes. When outputting at full 30W load, the charger may experience slight heating, which is normal. The product has a built-in intelligent temperature control chip that automatically reduces power when the temperature is too high to ensure safety. It is recommended to use it in a ventilated environment.
