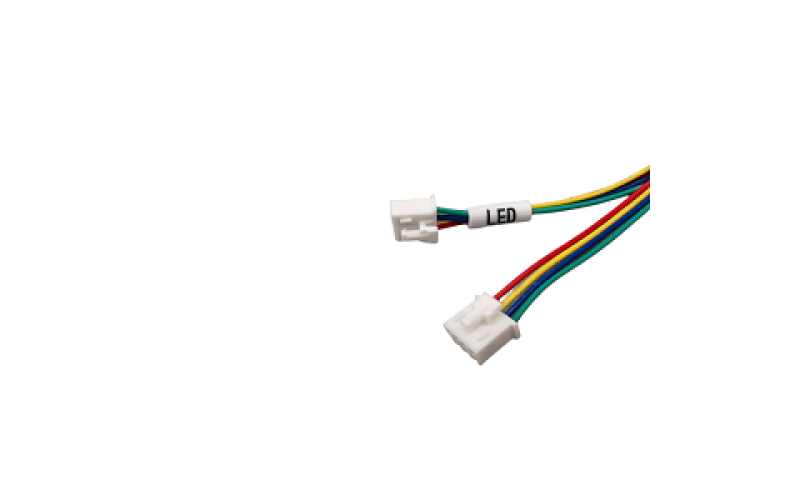

Industrial Equipment DC Wiring Harness Processing Factory | UL-Certified Custom Wiring Harness Solution Provider
An industrial equipment DC wiring harness processing factory is a critical link in ensuring the stable operation of automated production lines, energy equipment, and heavy machinery. This article systematically elaborates on the conductor solutions, insulation systems, customization capabilities, and warranty policies of AC/DC wiring harnesses, providing B2B procurement and engineering decision-makers with a complete technical selection reference. It also clarifies the scope and exceptions of the one-year warranty, helping enterprises achieve high reliability and full-process traceability management in electrical connections.
Industrial Equipment DC Wiring Harness Processing Factory: Industry Positioning and Core Value
In automated production lines, servo drive systems, and photovoltaic energy storage devices, industrial equipment DC wiring harness processing factories perform the fundamental function of precise transmission of electrical energy and signals. The core differences between DC and AC wiring harnesses in industrial applications are reflected in three aspects: low-ripple transmission, voltage drop control, and electromagnetic compatibility. DC systems have higher requirements for voltage stability, as any fluctuation in contact resistance can cause a decline in control precision; AC systems, on the other hand, focus more on insulation withstand voltage and harmonic suppression. Therefore, choosing a professional processing factory with OEM standard compliance and full-process traceability capabilities, rather than a general wiring harness supplier, is the prerequisite for ensuring long-term reliable operation of equipment. The factory's quality system covers closed-loop control from incoming material inspection, wire cutting and crimping to finished product aging tests, with clear quality control points at every process step.
AC/DC Wiring Harness Product Line In-Depth Analysis and Technical Specifications
The AC/DC wiring harness product line uses high-purity tin-plated copper stranded wire (AWG 24~6), achieving a balance between flexibility, conductivity, and oxidation resistance. The conductor solution undergoes strict screening to ensure stable electrical performance under high current carrying and frequent bending conditions. The insulation system adopts a multi-layer design: PVC (105°C) for conventional industrial environments, halogen-free flame-retardant XLPE (125°C) for high flame-retardant requirements, and silicone rubber (200°C) for high-temperature harsh conditions. Rated voltage covers AC 100~600V / DC 5~48V, with support for customized expansion to higher parameters. Protection ratings and mechanical strength determine connector locking and wiring harness fixation solutions based on equipment vibration characteristics and protection requirements, ensuring no loosening or wear during long-term operation.
| Parameter Item | Technical Specification | Customization Range |
|---|---|---|
| Conductor Specification | High-purity tin-plated copper stranded wire AWG 24~6 | Adjustable per current-carrying capacity calculation |
| Insulation Material | PVC (105°C) / XLPE (125°C) / Silicone rubber (200°C) | Selected based on ambient temperature and flame-retardant rating |
| Rated Voltage | AC 100~600V / DC 5~48V | Customizable for higher voltage ratings |
| Connector Type | Configured per OEM interface standards | Supports multiple international standard interfaces |
| Protection Rating | IP rating determined per application environment | Customizable waterproof and dustproof solutions |
Customization supports various wire gauges, lengths, connector types, and protection ratings. Temperature-resistant and flame-retardant materials must be selected based on the application environment. We provide detailed technical parameter tables for reference, enabling engineering teams to obtain complete data support during the selection phase [Fact 2].
Core Processes and Quality Control
Fully Automated Processing and Terminal Crimping Standards
The industrial equipment DC wiring harness processing factory adopts fully automated wire cutting, stripping, crimping, and soldering processes. Terminal crimping pull force and cross-section analysis strictly follow industry standards. Each batch of wiring harnesses undergoes cross-section sampling inspection after crimping to ensure crimp height and deformation are within controlled ranges, eliminating hidden risks of poor contact.
Electrical Performance Testing and Insulation Rating Determination
Insulation withstand voltage testing and continuity impedance testing are mandatory pre-shipment inspections to ensure the electrical performance of each wiring harness meets standards. How to determine whether the insulation rating of an AC/DC wiring harness meets high-power application scenarios [Fact 3]? A comprehensive evaluation based on temperature rise curves, withstand voltage strength, and material thermal aging life is required. For continuous high-current loads, silicone rubber or XLPE insulation solutions are recommended, with conductor cross-sectional area and allowable voltage drop calculated accordingly.
Key Parameter Confirmation and Traceability Management
Before installation, rated voltage, current, and wire gauge specifications must be confirmed to ensure compatibility with equipment interfaces. Original factory custom wiring harnesses are recommended to ensure electrical performance and mechanical strength comply with OEM standards [Fact 4]. Each batch of wiring harnesses comes with material certificates and test reports, achieving full-process traceability from raw materials to finished products.
Application Scenarios and Selection Guide
AC/DC wiring harnesses are widely used in CNC machine tool servo drives, industrial robot power and signal transmission, photovoltaic inverter DC-side connections, and energy storage system BMS internal interconnections. The selection decision tree determines insulation materials based on ambient temperature, flame-retardant rating, bending radius, and chemical resistance. In high-power scenarios, silicone rubber or XLPE solutions are recommended, with conductor cross-sectional area and voltage drop calculated simultaneously. The compatibility checklist includes connector pin definitions, locking methods, protection ratings (IP ratings), and wiring harness routing space constraints, ensuring smooth on-site installation and long-term reliability.
- CNC Machine Tool Servo Drives: Requires low-ripple transmission and high anti-interference capability
- Industrial Robots: Flexibility and fatigue resistance under frequent bending conditions
- Photovoltaic Inverter DC Side: High withstand voltage and weather resistance requirements
- Energy Storage System BMS: Signal transmission integrity and anti-crosstalk capability
Warranty System and After-Sales Service Commitment
All products enjoy a one-year warranty, covering: material defects, manufacturing process issues, and performance parameters not meeting specifications [Fact 1]. Under normal use conditions, if quality issues such as insulation aging, conductor breakage, or poor contact occur, free repair or replacement services are provided [Fact 1]. Damage caused by human factors, improper installation, or use beyond technical parameters is not covered by the warranty [Fact 1]. The after-sales technical support team can assist customers with on-site fault diagnosis and selection review, minimizing system recovery time.
Frequently Asked Questions (FAQ)
How to determine whether the insulation rating of an AC/DC wiring harness meets high-power application scenarios?
A comprehensive evaluation of temperature rise curves, withstand voltage strength, and material thermal aging life is required. For continuous high-current loads, silicone rubber (200°C) or XLPE (125°C) insulation solutions are recommended, with conductor cross-sectional area and allowable voltage drop calculated to ensure the insulation layer maintains stable electrical strength at maximum ambient temperature.
What key parameters should be noted during AC/DC wiring harness installation to ensure compatibility?
Before installation, rated voltage, current, and wire gauge specifications must be confirmed to ensure compatibility with equipment interfaces. Connector pin definitions, locking methods, protection ratings (IP ratings), and wiring harness routing space constraints should also be verified. Original factory custom wiring harnesses are recommended to ensure electrical performance and mechanical strength comply with OEM standards [Fact 5].
How are lead times and minimum order quantities for custom wiring harnesses confirmed?
Lead times and minimum order quantities depend on wiring harness specification complexity, raw material inventory, and current production scheduling. Please provide detailed technical parameter tables or drawings, and we will reply with specific lead times and MOQ requirements within one business day.
Are sample verification or small-batch trial production services provided?
Sample verification services are provided. For new designs or modified wiring harnesses, small-batch trial production is recommended to verify assembly compatibility and electrical performance. Sample lead time is typically 5~7 business days, and trial production batches receive full technical engineer tracking support.
What is the handling process and response time for quality issues during the warranty period?
If quality issues such as insulation aging, conductor breakage, or poor contact occur during the warranty period, please provide fault photos and operating condition descriptions. We will respond within 24 hours and arrange free repair or replacement services after confirming the issue falls within warranty coverage [Fact 1].
How should the temperature rating of wiring harnesses be selected based on ambient temperature?
For conventional industrial environments (-20°C~85°C), PVC insulation is suitable; for high-temperature areas or locations near heat sources, XLPE (125°C) is recommended; for extreme high temperatures or frequent overload conditions, silicone rubber (200°C) is recommended. Please provide the actual ambient temperature range for precise selection.
What are the performance differences between halogen-free flame-retardant XLPE and PVC?
Halogen-free flame-retardant XLPE produces low smoke and no corrosive halogen gases when burned, making it suitable for enclosed equipment with high environmental and personnel safety requirements. Its temperature rating (125°C) is higher than PVC (105°C), but its flexibility is slightly lower than PVC, requiring a trade-off based on routing space and bending frequency.
How to confirm whether the current-carrying capacity of a wiring harness meets equipment requirements?
Current-carrying capacity depends on conductor cross-sectional area, insulation material temperature rating, and ambient temperature. Please provide the equipment's rated current and peak current, ambient temperature, and wiring harness length. We will calculate based on standard current-carrying capacity tables and recommend the appropriate wire gauge specification.
How should the protection rating (IP rating) of wiring harnesses be selected?
The protection rating should be determined based on the installation location: IP40 for dry control cabinets; IP65 or above recommended for humid or dusty environments; IP67/IP68 required for outdoor or washdown conditions. Please provide the actual application environment, and we will match the appropriate connectors and sealing solutions.
Is full customization of wiring harness length and connector type supported?
Yes. Customization dimensions include wire gauge, length, connector type, and protection rating. Temperature-resistant and flame-retardant materials must be selected based on the application environment. We provide detailed technical parameter tables for reference [Fact 2]. Please provide interface definitions or samples, and we will design an adaptation solution accordingly.
How is the electromagnetic compatibility (EMC) of wiring harnesses ensured?
For signal transmission wiring harnesses, shielding layer designs (braided shielding or foil shielding) can be used to reduce electromagnetic interference. Power wiring harnesses and signal wiring harnesses must maintain safe spacing in layout. Specific EMC solutions need to be customized based on overall equipment layout and interference source characteristics.
How is the bending life of wiring harnesses evaluated?
Bending life is related to conductor stranding structure, insulation material, and bending radius. For high-flexibility applications (such as robot joints), fine-stranded conductors and specially flexible insulation materials are recommended. Please provide bending frequency, bending angle, and expected life requirements, and we will recommend the appropriate structure.
What test items are performed on wiring harnesses before shipment?
Each batch of wiring harnesses undergoes insulation withstand voltage testing, continuity impedance testing, and visual inspection. Key processes (terminal crimping) undergo pull force and cross-section sampling inspection. Additional tests such as temperature rise testing, salt spray testing, and flame-retardant testing can be added per customer requirements.
Does the warranty cover equipment damage caused by wiring harness issues?
The warranty scope is limited to material defects, manufacturing process issues, and performance parameters not meeting specifications of the wiring harness itself [Fact 1]. Secondary equipment damage caused by wiring harness failure is not covered by the warranty. Necessary protective measures are recommended in system design.
How to obtain detailed technical parameter tables for wiring harnesses?
Please provide your application scenario, rated voltage/current, and environmental conditions, and we will send the corresponding technical parameter table. The parameter table includes complete data such as conductor specifications, insulation materials, rated values, temperature rise curves, and mechanical properties [Fact 2].
About Winna Technology
Winna Technology specializes in power adapters, AC/DC cable harness customization, and ultrasonic metal welding equipment R&D and manufacturing, providing one-stop OEM/ODM services.
Our products are CE/UL/FCC/CCC/RoHS certified, with an annual return rate below 0.02%, serving customers in 50+ countries and regions worldwide.
