Ultrasonic Wire Harness Welding | Demonstration of Solid-State Welding Process for Multi-Strand Copper Wires
2026-08-05 00:00:00
.welder-sample{font-size:15px;line-height:1.85;color:#374151;max-width:900px}
.welder-sample h3{font-size:18px;font-weight:600;color:#111827;margin:28px 0 12px;padding-left:14px;border-left:3px solid #DC2626}
.welder-sample p{margin:0 0 14px}
.welder-sample .spec-box{background:#F9FAFB;border-radius:10px;padding:18px 22px;margin:16px 0;border-left:3px solid #DC2626}
.welder-sample .spec-box strong{color:#111827}
.welder-sample img{max-width:100%;height:auto;border-radius:10px;margin:8px 0;box-shadow:0 2px 12px rgba(0,0,0,0.08)}
.welder-sample .img-grid{display:grid;grid-template-columns:1fr 1fr;gap:12px}
.welder-sample .img-grid img{width:100%;height:auto;margin:0}
.welder-sample .tag{display:inline-block;background:#FEF2F2;color:#DC2626;font-size:12px;font-weight:600;padding:2px 10px;border-radius:10px;margin-right:4px}
@media(max-width:768px){.welder-sample .img-grid{grid-template-columns:1fr}}
Welding Type
Ultrasonic Wire Harness Welding — Multiple copper wires are welded together in a solid state through ultrasonic high-frequency vibration, without the need for solder or flux.
Process Parameters: Frequency 20kHz | Welding Power 2000W | Welding Time 0.25~0.5s | Amplitude 40~60μm
Applicable Wire Gauge: 0.5mm² ~ 10mm² stranded copper wire
Welding Results: Weld bonding rate ≥90% | Tensile strength ≥85% of wire body strength | Internal resistance ≤0.5mΩ
Process Advantages
Compared to traditional soldering, ultrasonic wire harness welding requires no preheating, no solder splatter, and no flux cleaning process. The single-point welding cycle is only 0.3 seconds, improving efficiency by more than 5 times. It is especially suitable for mass production scenarios of automotive wire harnesses, home appliance wire harnesses, and industrial control wire harnesses.

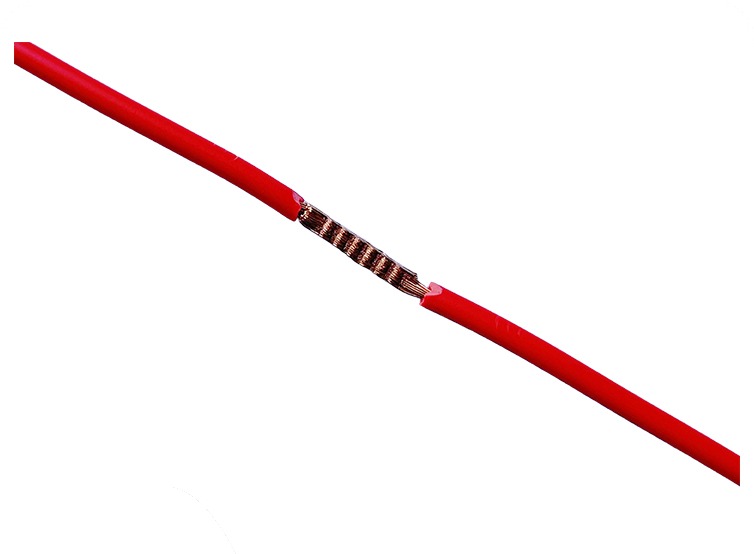

▼ Wire Harness Welding Sample Physical Display
